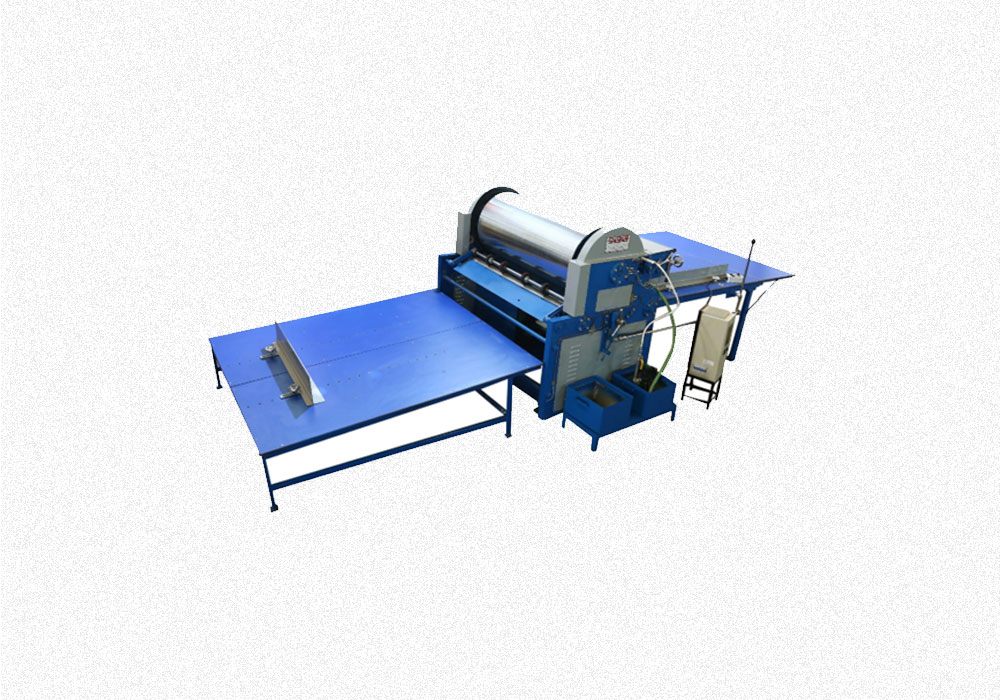

Flexo Paper Printing Machine – Single Color

Flexo Paper Printing Machine – Single Color

Sandeep Engineers Flexo Paper Printing machine is designed for Higher production of sharp and clear printing on the paper. It is equipped with anilox and rubber roller to control optimum ink transfer ensuring clear and sharp printing result. This sheet fed machine is equipped with hard chrome plated main shell & pressure roller, digital counter and sensor. Self lock brake system is provided avoiding wastage of paper, if sheet is wrongly fed. This heavy duty and robust machine is available in Single, Double, Three and four color. The machine shall optionally be equipped with Ac Variable speed drive with portable remote & control panel ,centralized oil lubrication system and ink circulation system.

Enquire Now
  • Technical Specification
  • Description
  • Features
flexo-paper-printing-machine-single-color
Number Of Colors 1
Usage/Application Paper Printing
Weight 1800 Kg
Phase Three Phase
Power Source Electric
I Deal In New Only
Model Name/Number SCP-01
Country of Origin Made in India
Printing Area 51 x 72 Inch
Motor 1/2 HP
Floor Area 210 x 84 Inch
Machine Size 52 x 72 Inch
Production Output Capacity 1000 sheets/hour

Sandeep Engineers Flexo Paper Printing machine is designed for Higher production of sharp and clear printing on the paper. It is equipped with anilox and rubber roller to control optimum ink transfer ensuring clear and sharp printing result. This sheet fed machine is equipped with hard chrome plated main shell & pressure roller, digital counter and sensor. Self lock brake system is provided avoiding wastage of paper, if sheet is wrongly fed. This heavy duty and robust machine is available in Single, Double, Three and four color. The machine shall optionally be equipped with Ac Variable speed drive with portable remote & control panel ,centralized oil lubrication system and ink circulation system.

Available Size 52 x 72 52 x 82 62 x 82 62 x 92
  • High Accuracy and sharp Printing
    • Start point registration:+_1.5mm
    • Print registration before two printing stations +_1mm
  • Small Fonts, Barcodes, Reverse Printing & screen jobs can easily be printed on Our "Supercut" machine.
  • Heavy Duty One piece main Body.
  • Helical gear systems will latest technology for long life without lubrication And noiseless running.
  • SS gum Tray
  • Ex-tension feeding foldable platform ensuring operation friendly usage.
  • Delivery Collector table with both side gauges –reducing one labour.
  • Main Printing cylinder ground and hard chrome plated & finished wall thickness Of 14mm.
  • Electronic engraved Anilox roll
  • High Nitrile grade Rubber roll
  • Complete control panel with cabinet, MCB etc. and Portable remote with Digital counter sensor
