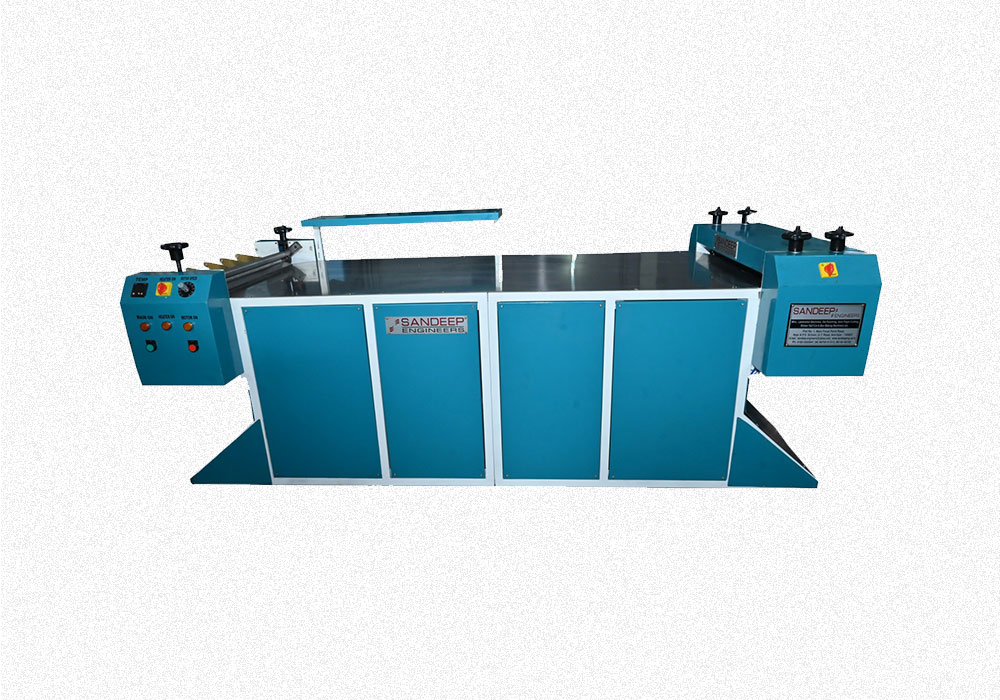

Case Making machine with Pressing Unit

Case Making machine with Pressing Unit

Sandeep Engineers semi-automatic Case-making Making Machine is manufactured as per the customer's demands or needs. Sandeep Engineers case-making machine is designed for short and medium-run jobs. It offers an efficient and precise gluing mechanism. It is suitable for various industries and delivers high-quality results with durability and reliability for professional packaging needs. Combining manual and automatic features, the machine streamlines the case-making process while still requiring operator intervention for certain tasks. The productivity of the case-making machine can be enhanced by the combination of other machines like the box forming machine and the box Corner Taping Machine. We also manufactured the Case-making machine with an automatic feeder.

Enquire Now
  • Technical Specification
  • Description
  • Features
  • Application
SPECIFICATIONS:
Brand Sandeep
Gum Type format Hot Glue
Cover Material Thickness 90-170 gsm
Board  Thickness 1.4mm-4.0mm
Turn – in Width 15mm to 20mm
Speed Up to 25 Cases/Hour
Glue Application From Bottom Side
Power 4.5KW /220 Volts /50Hz
Dimensions (L x W x H) 2700 x 1200 x 1100 mm
Net Weight  450-500 kgs (Approx.)
Automation Grade Semi-Automatic
Phase Single phase or 3 phase
Country Of Origin Made in India
Driven Type AC or DC

The machine is suitable for the production of:

  • Notebook
  • Book Cover
  • Box Files
  • Photo Album Cover
  • Game & Puzzle Boards
  • Clip Boards
  • Ring Files
  • Table Calendar Stand
  • Sweet Boxes
  • Practical file cases
  • Mobile boxes

Sandeep Engineers semi-automatic Case-making Making Machine is manufactured as per the customer's demands or needs. Sandeep Engineers case-making machine is designed for short and medium-run jobs. It offers an efficient and precise gluing mechanism. It is suitable for various industries and delivers high-quality results with durability and reliability for professional packaging needs. Combining manual and automatic features, the machine streamlines the case-making process while still requiring operator intervention for certain tasks. The productivity of the case-making machine can be enhanced by the combination of other machines like the box forming machine and the box Corner Taping Machine. We also manufactured the Case-making machine with an automatic feeder.

  • Motor Control Panel AC / DC Drive
  • Digital Temperature Controller
  • Stainless Steel Gluing Roller
  • Stainless Steel Gum Tray
  • Stainless Steel Bed
  • Manual front edge feeder for various paper sizes.
  • Sheet Pressing Unit with Roller
  • One Delivery Table
  • Pressing and Gluing Unit attached.
  • The circulating glue system with temperature controller assures the adequate glue consistency.
  • Adjustable gluing roller apply smooth gluing on the paper.
  • It is well manufactured, durable and reliable machine.
