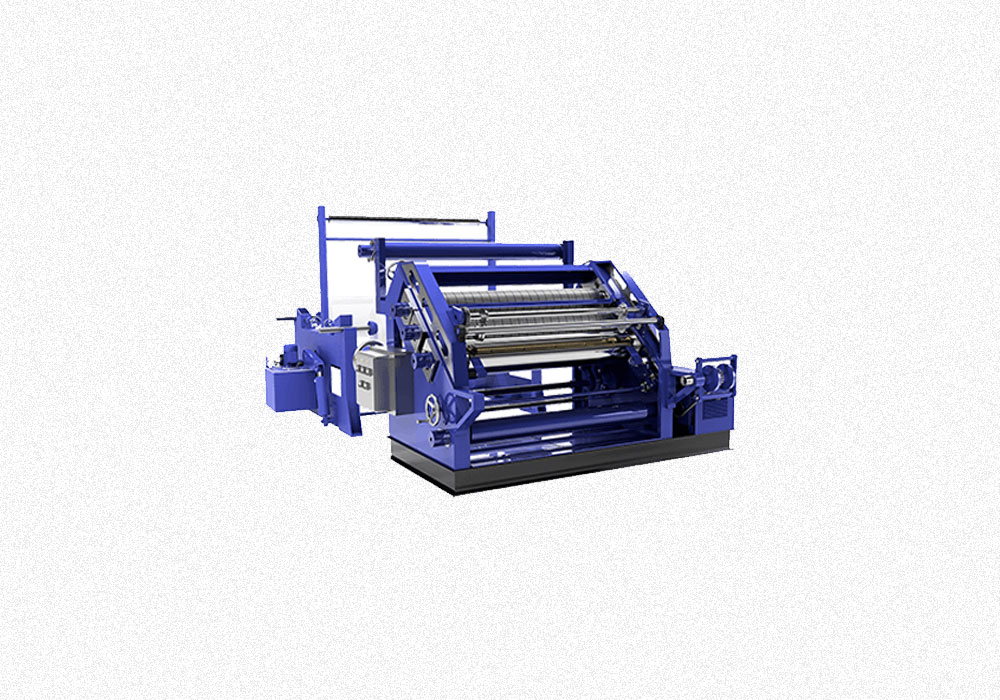

High Speed Oblique Type Single Facer paper Corrugation Machine

Sandeep Engineers High Speed Single face Paper Corrugating Machine is a type of equipment used in the packaging Industry to create corrugated cardboard or paperboard. The machine is designed with best quality raw material and high technology. It is commonly used to convert paper into 2 Ply Corrugated rolls. The machine is efficient reliable and easy to operate. It requires less maintenance and low operating costs.

Enquire Now

Size	42”	52”	62”	72”
Motor	5 H.P	7.5 H.P	7.5 H.P	10 H.P
Designed Speed	35-40 Mt/min	35-40 Mt/min	35-40 Mt/min	35-40 Mt/min

Machine speed 40mt/min.
Heavy Duty Cast Iron Body.
Flute Roll Diameter is 225.
Pressure Roll Diameter is 260.
Single Profile with one set of Flute roll.
Gap between Flute roll and Pressure roll can be mechanically adjusted.
Flute roll is made from special alloy steel.
Hard Chrome plated gum roller.
A.C Variable speed drive with Control Panel.
Frequency drive attached to helical gear box for speed control.
Machine is designed for Zero Tolerance and Minimum Wastage.
Manual Oil Lubrication System with Timer.
Equipped with Bearing Mounted Pre-Heaters for Demoisturing of Paper.
Heavy Duty Reduction Gear Box.
Note : Slitting blades are optional.
