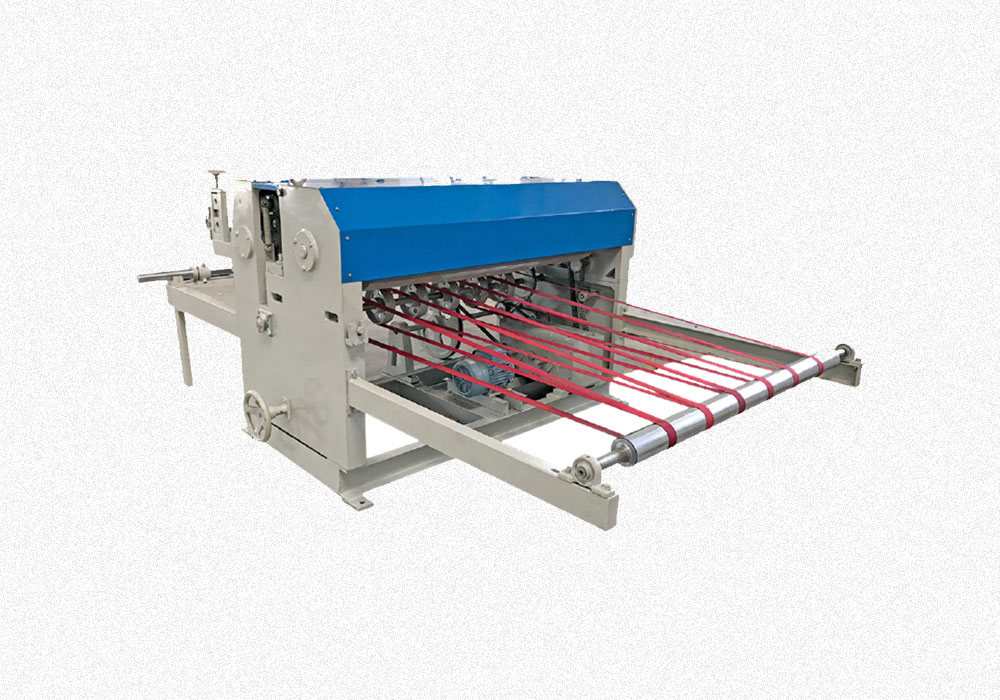

High Speed Corrugated Sheet Cutting Machine [ PIV Gear Box]

Sandeep Engineers High Speed PIV Gear Box type Corrugated Sheet Cutting Machine is designed for high production in cutting paper as well as 2 ply corrugated sheet without damaging the flutes. This machine can be used as an independent unit or can be attached to a corrugation machine for direct and accurate sheet cutting, which minimizes the percentage of wastage. Ply gear box is provided for cutting of the sheet to the required length. A delivery conveyer is provided to carry the sheets out. Variable speed motor is recommended for economy in wastage at an additional cost.

Enquire Now

Machine Size	45"	52"	56"	62"	72"
Motor Required (H.P)	3	3	3	3	3
Floor Space	80" X 120"	90" X 120"	95" X 120"	100" X 120"	110 X 130"
Machine Height	48"	48"	48"	48"	48"
Gross Weight (Kgs)	1600	1800	1900	2000	2200
Production Capacity ( Min/Max)	20/60	20/60	20/60	20/60	20/60
Cutting Length (Min / Max)	20"/80"	20"/80"	20"/80"	20"/80"	20"/80"

Heavy Duty Cast Iron Body
Machine is designed to cut paper and 2-Ply Corrugated liner
High Graded High carbon high chromium material blades.
Conveyor equipped with Nylon Belts
P.I.V Gear Box is provided to adjust cutting size
ISI marked standard electric motor
Digital Counter and Control Panel
Optional: Slitting Attachment
