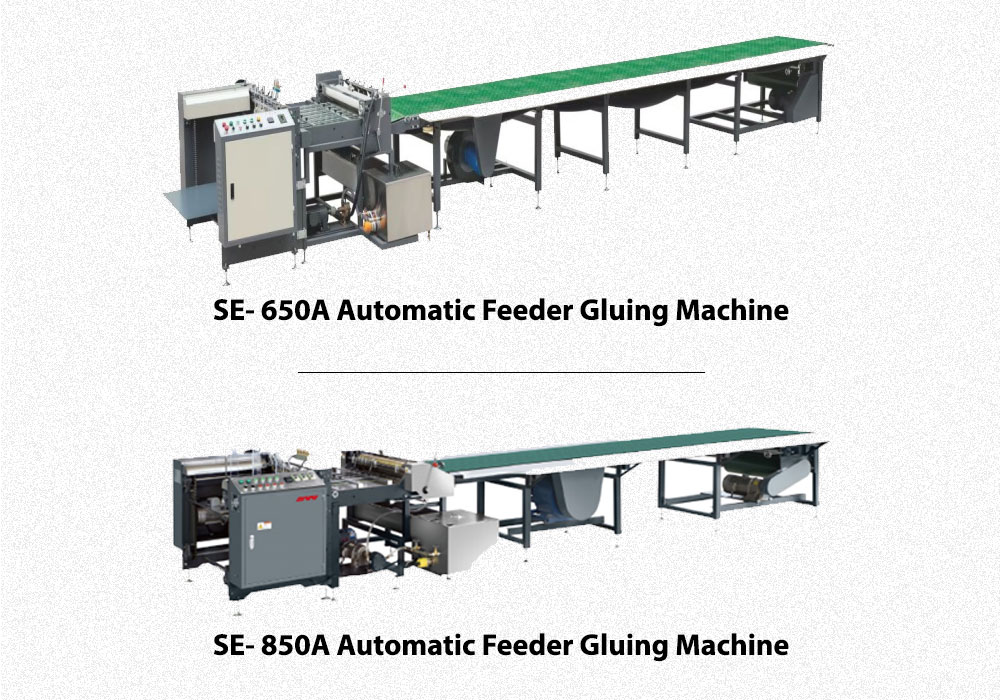

Automatic Case Making Machine / Gluing Machine

SPECIFICATIONS:
Model	SE-650	SE-850
Sheet Thickness	80 -200g	80-200g
Sheet cover width max	600mm	800mm
Sheet cover length max	100-2000mm	100-2000mm
Production speed	0-40pcs/min	0-40pcs/min
Power	9kw / 380 V	9kw / 380 V
Machine dimension	6500 x 1350 x 1250	6500 x 1500 x 1250
Machine weight	850 kg	1150 kg

Detailed Information

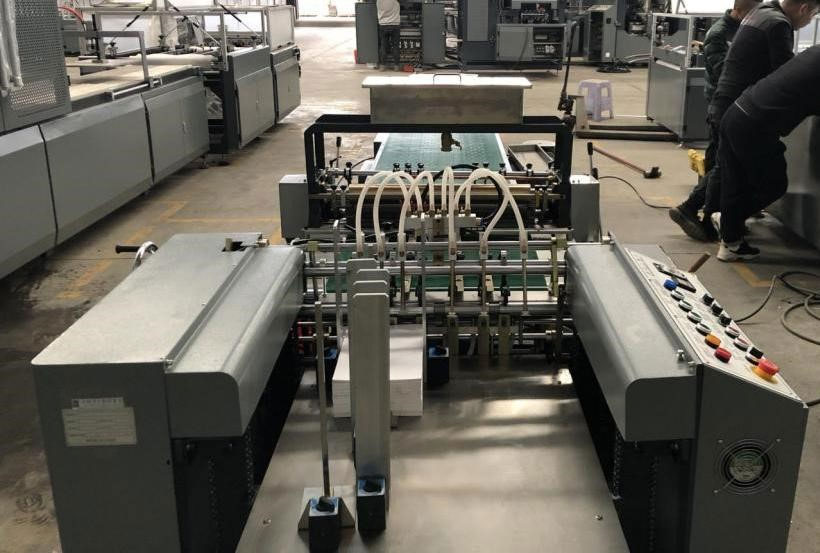

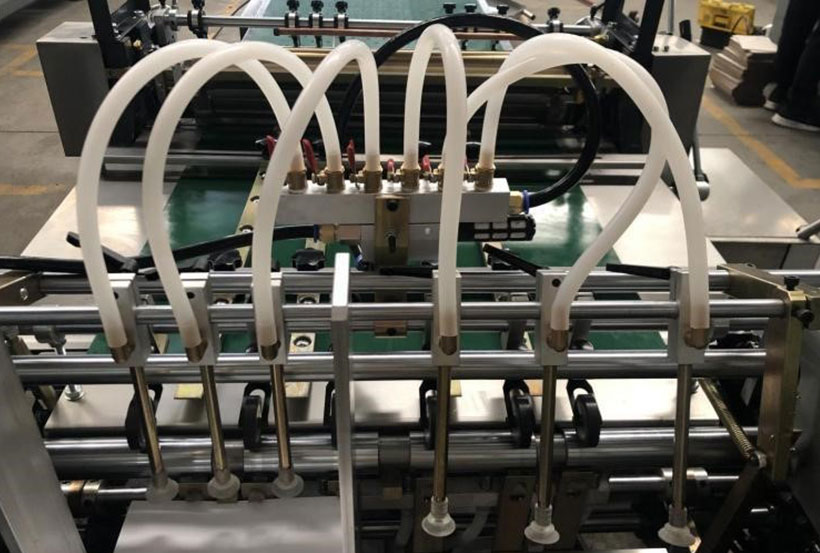

Automatic Feeder Part

Automatic sheet-feed front edge suction for various sheet sizes. Paper pile max height is 400mm. It can place one or two pile paper to feeder together. Machine with foot panel which can control full machine start or stop

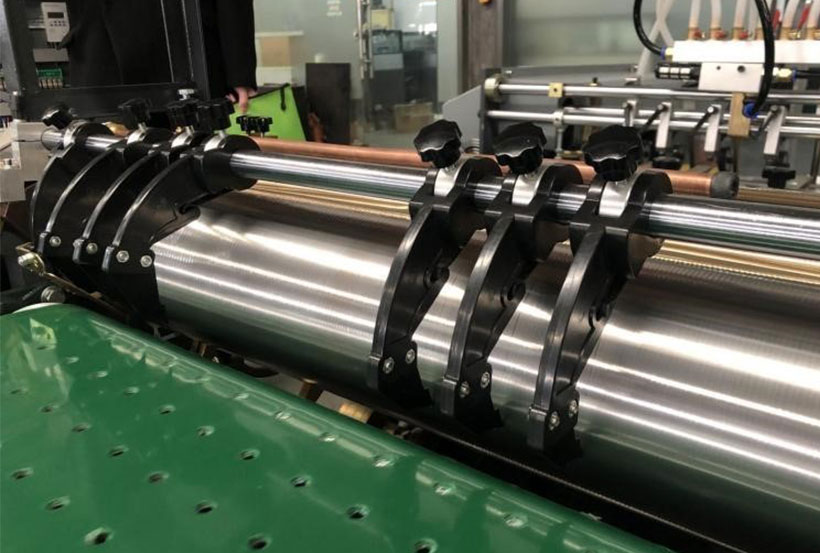

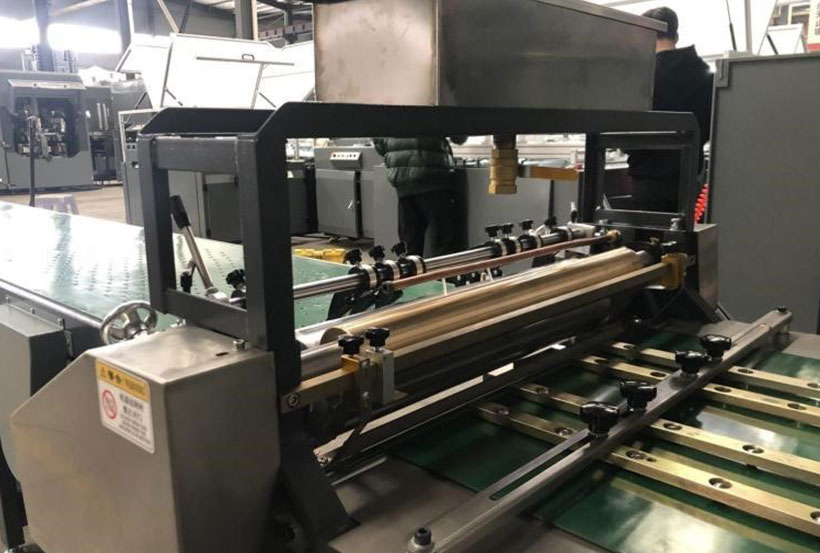

Gluing part

Gluing roller with copper knife, which avoid paper stick on roller, ball bearing design of feed table, the sheets are conveyed straight-through by pressure system. Machine can use the jelly glue and cold glue, with separated glue tank.

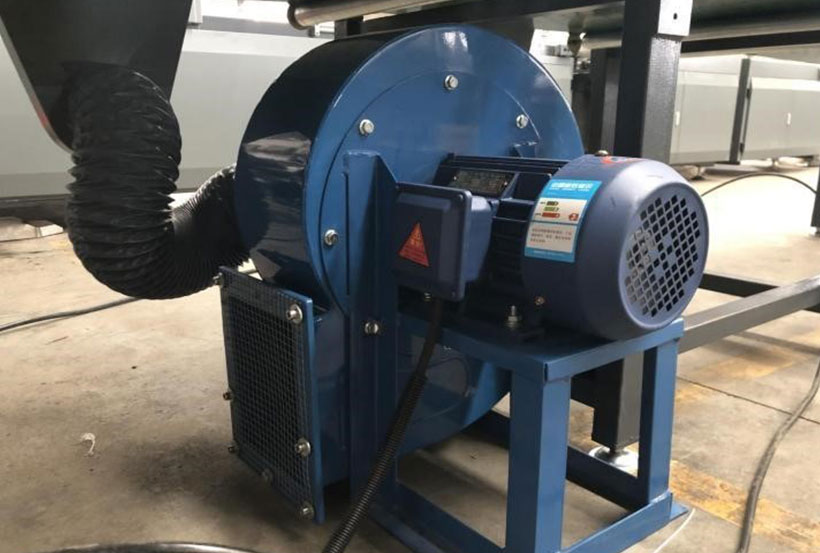

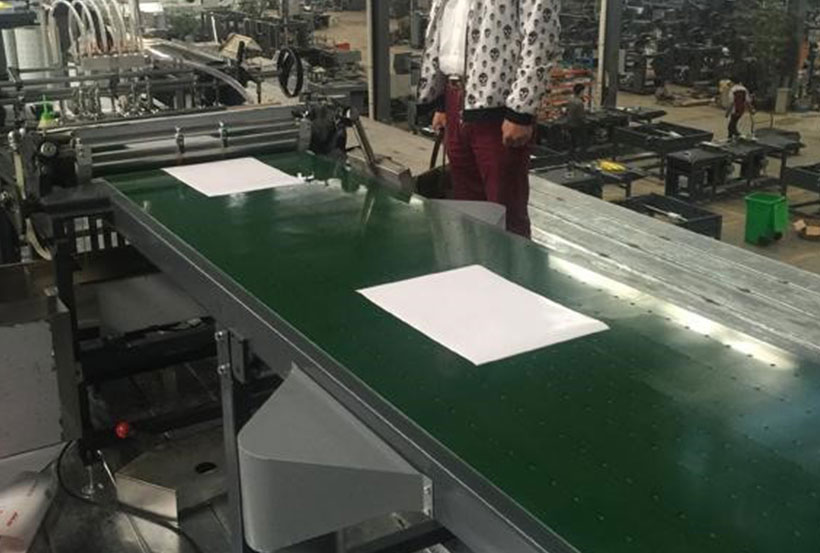

Conveyor Belt Part

Conveyor equipped with air-suction system to forward sheet flat and stably. Belt length common is 6 meters, and it can be customized, min length is 2.2 meters.

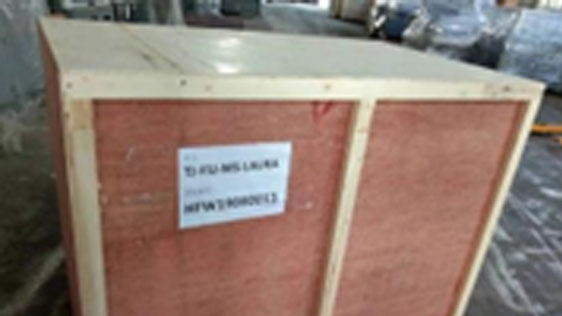

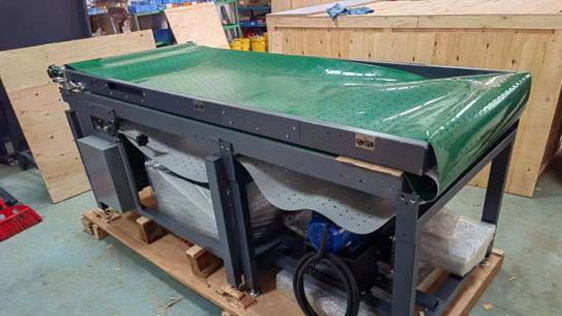

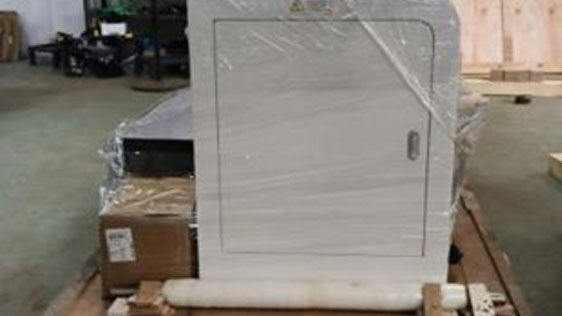

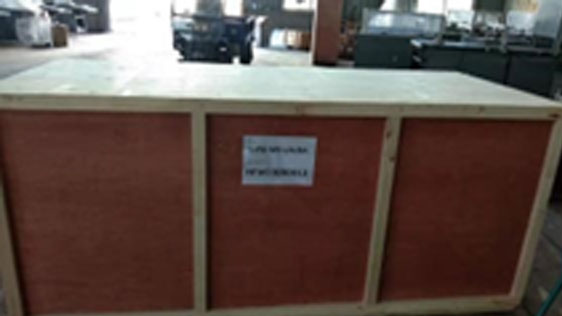

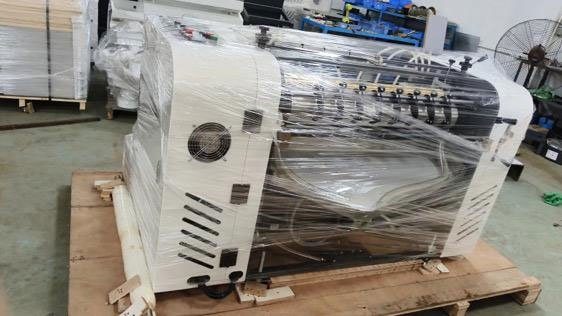

Packaging

Sandeep Engineers semi-automatic Case-making Making Machine is manufactured as per the customer's demands or needs. Sandeep Engineers case-making machine is designed for short and medium-run jobs. It offers an efficient and precise gluing mechanism. It is suitable for various industries and delivers high-quality results with durability and reliability for professional packaging needs. Combining manual and automatic features, the machine streamlines the case-making process while still requiring operator intervention for certain tasks. The productivity of the case-making machine can be enhanced by the combination of other machines like the box forming machine and the box Corner Taping Machine. We also manufactured the Case-making machine with an automatic feeder.

The machine is suitable for the production of:

Notebook
Book Cover
Box Files
Photo Album Cover
Game & Puzzle Boards
Clip Boards
Ring Files
Table Calendar Stand
Sweet Boxes
Practical file cases
Mobile boxes
Gift boxes

Sheet front edge feeder for various paper sizes.
Magnetic side tops are flexible and steady for paper.
With ball bearing design of feed table, the paper sheets are conveyed straight-through by pressure system.
Adjustable gluing rollers apply smooth gluing on the paper surface.
The circulating glue system with temperature controller assure the adequate glue consistency.
A built –in washing system, clean up within 5 minutes.
Belt with suction system to keep the paper without any movement.
Auto feeding system is provided in this model.
Variable Time heating to improve production efficiency.
4.5 meter conveyor equipped with suction system to forward sheet flat and stably. The length on conveyor is customizable as per client’s requirement.

Gift Boxes
Mobile Boxes
Sweet Boxes
Sweet Boxes
Watch Boxes
Book Cover Case
File Cover Case
Album Case
Album Case
File Cover Case
Game Board
Calendar Case
