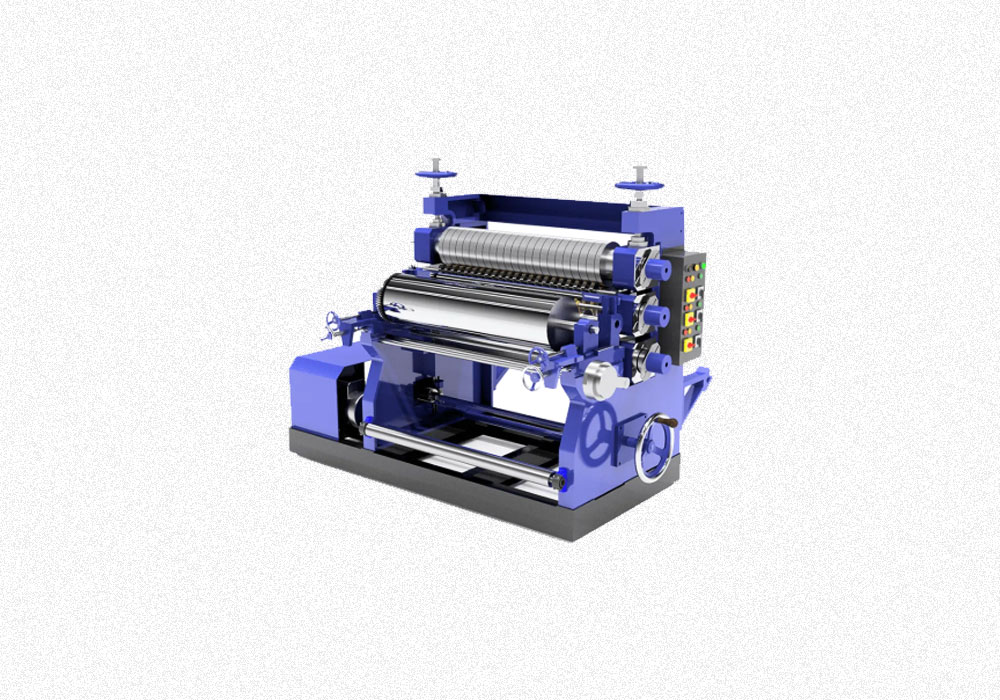

High Speed Vertical Type Single Face paper Corrugation Machine

Sandeep Engineers Vertical Model of Paper Corrugation Machine is sturdy in construction and simple to operate. The rollers are bush mounted Electric heaters are provided for appropriate conversion of paper to 2 ply corrugated sheets. The machine is provided with manually operated twin shaft reel stand. The variable speed motor is recommended for better quality & economy in wastage at an additional cost. Normal motorised reel stand or 'JUMBO' Type Motorised reel stand can be provided at an additional cost.

Enquire Now

Size	32	36
Design Speed/ Output (PM)	100/80”	100/80”
Power main Motor( H.P)	5.0	5.0
Gum Circulator(H.P)	0.5	0.5
Hydraulic Stand(H.P)	2.0	2.0

Advanced single facer corrugating machinery
Sturdy construction
Motorized loading reel stand
Hand wheels are provided to upper corrugating rolls for adjustment of pressure at any selected setting
One side hand wheel with worm for the adjustment of the pressure roll
Pre-heater for liner paper and pre-conditioner for fluted media paper
Gap between glue applicator roller and doctor roller is controlled manually
With manual dividing glue device
Drive roll drive from gear box
Design speed 100 mt/minute
Maximum output 50 ft/minute
Adjustment of upper corrugating roller and pressure of pressure roller and glue roller is controlled by pneumatic systems
