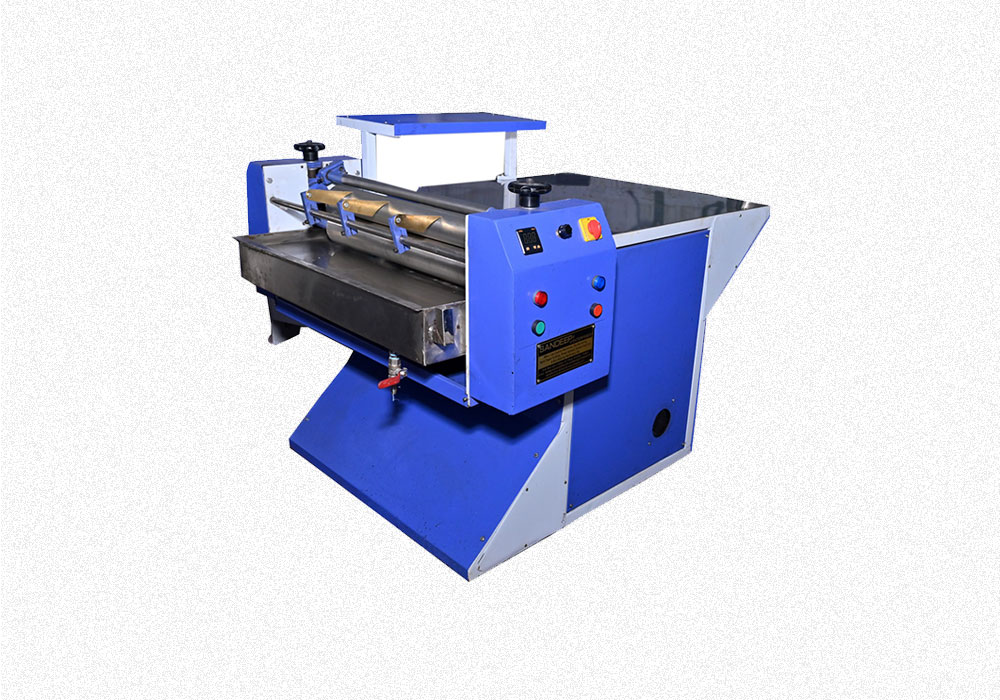

Case Making Machine [Gluing Unit Only]

Sandeep Engineers semi-automatic Case-making Making Machine is manufactured as per the customer's demands or needs. Sandeep Engineers case-making machine is designed for short and medium-run jobs. It offers an efficient and precise gluing mechanism. It is suitable for various industries and delivers high-quality results with durability and reliability for professional packaging needs. Combining manual and automatic features, the machine streamlines the case-making process while still requiring operator intervention for certain tasks. The productivity of the case-making machine can be enhanced by the combination of other machines like the box forming machine and the box Corner tapping machine. We also manufactured the Case-making machine with an automatic feeder.

Enquire Now

SPECIFICATIONS:
Brand	Sandeep
Gum Type format	Hot Glue
Cover Material Thickness	90-170 gsm
Board Thickness	1.4mm-4.0mm
Turn – in Width	15mm to 20mm
Speed	Up to 25 Cases/Hour
Glue Application	From Bottom Side
Power	4.5KW /220 Volts /50Hz
Dimensions (L x W x H)	1400 x 1200 x 1100 mm
Net Weight	200 kgs (Approx.)
Automation Grade	Semi-Automatic
Phase	Single phase or 3 phase
Country Of Origin	Made in India
Driven Type	AC or DC

The machine is suitable for the production of:

Notebook
Book Cover
Box Files
Photo Album Cover
Game & Puzzle Boards
Clip Boards
Ring Files
Table Calendar Stand
Sweet Boxes
Mobile boxes
Practical File Case

the customer's demands or needs. Sandeep Engineers case-making machine is designed for short and medium-run jobs. It offers an efficient and precise gluing mechanism. It is suitable for various industries and delivers high-quality results with durability and reliability for professional packaging needs. Combining manual and automatic features, the machine streamlines the case-making process while still requiring operator intervention for certain tasks. The productivity of the case-making machine can be enhanced by the combination of other machines like the box forming machine and the box Corner tapping machine. We also manufactured the Case-making machine with an automatic feeder.

Motor Control Panel AC / DC Drive
Digital Temperature Controller
Stainless Steel Gluing Roller
Stainless Steel Gum Tray
Stainless Steel Bed
Manual front edge feeder for various paper sizes.
The circulating glue system with temperature controller assures the adequate glue consistency.
Adjustable gluing roller apply smooth gluing on the paper.
It is durable machine.
