Rigid Box Forming Machine /Box Wrapping Machine

Rigid Box Forming Machine /Box Wrapping Machine

Sandeep Engineers model servo automatic rigid paper box forming machine is the ideal processing equipment rigid box. It can greatly improve the production efficiency. First, Inner box bottom paste with surface paper, then fix the product on the mold of the forming machine by hand, different size box with different molds, then automatic four side pasting, folding, and bubble pressing.The size adjusting and bubble pressing action controlled by the servo motor ensure the high precision. Sandeep Engineers Rigid Box forming machine is the latest box packaging equipment for all kinds of boxes like gifts boxes, cosmetic boxes, sweet boxes, watch boxes, shoes boxes, jewellery boxes etc. It is manufactured by analysing the customer upcoming demands and requirements. The greatest advantage of the machine is that the outer dimensions of the top cover can be input on the touch screen. The action of the corresponding parts such as Cornering etc. is automatically done by the machine.

Enquire Now
  • Technical Specification
  • Description
  • Features
  • Application
SPECIFICATIONS:
Model SE-200 SE-550 SE-650
Max box size 450 x 410 x120mm 500*450*120mm 600x480x150mm
Min box size 50 x 50 x 10mm 50*50*8mm 50x50x10mm
Speed 0-25 p/min 15-22 pcs/min 15-22 pcs/min
Air supply 10L/min 0.8mpa ≥0.6mpa ≥0.6mpa
Precision ±0.2mm ±0.2mm ±0.2mm
Voltage: 220 V 220V 50HZ 220V 50HZ
Power: 2.5kw 8KW 8KW
Net Weight 750kg (Approx.) 980kgs 1050kgs
Gross Weight 1000kg 1260kgs 1350kgs
Dimension 1500x1100x2000mm 1550*1210*1950mm 1600*1260*2100mm
Package dimension 1620*1200*2100mm 1670*1300*2270mm 1700*1360*2370mm

Working Process

The machine is an ideal automation equipment for producing various kinds of boxes like gifts boxes, Branded cosmetic boxes, sweet boxes, luxury watch boxes, branded shoes boxes, jewellery boxes, Mobile Boxes, Wedding card Invitation Boxes etc. The machine process starts with manually locating the inner box and the facial paper on the assembly line. The fixed box is placed into machine wood mold and then machine auto-completes the box gluing, folding, and forming at one time.

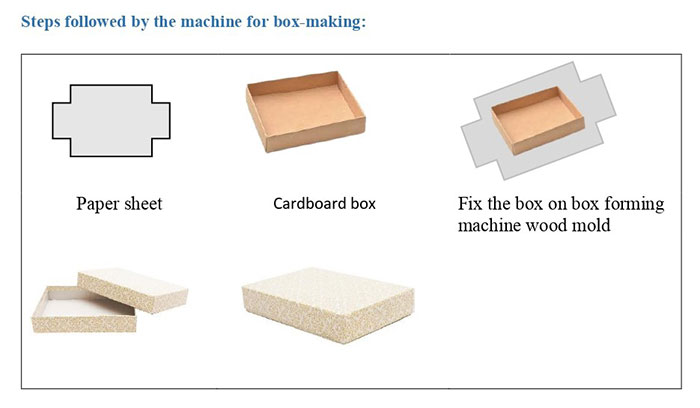

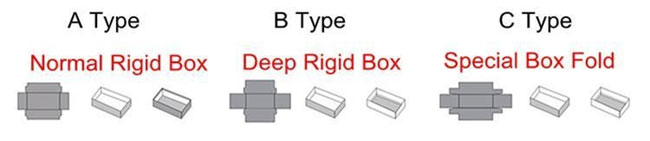

Steps followed by the machine for box-making:

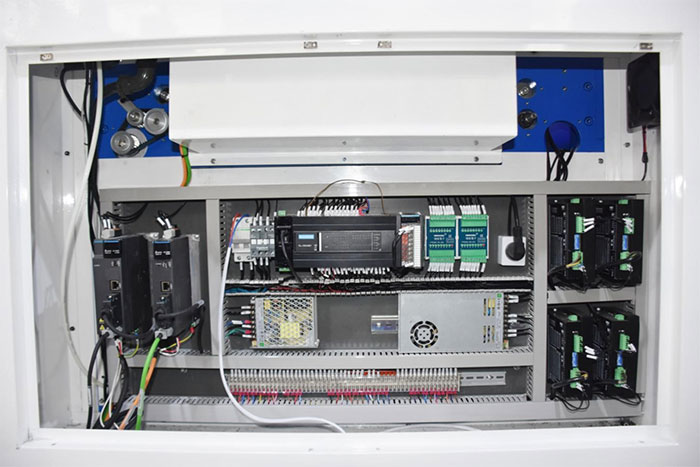

Machine Details

Each actions finished by the cylinder and also can setting the action lasting time, which are quick and high precision.
No need to replace the bubble pressing plate and the shovel blade, which effectively saves the adjustment time and the convenience of operation.
Machine with infrared guard rail, machine is safe when operating.

Size adjusting and bubble pressing action controlled by the servo motor, ensure the high precision and also easy operating.
No need to mechanical adjust, input the data on the touch screen, it will be adjusted automatically, high effective.
Machine with English, Spanish, Turkish, etc several languages.

Box mold

one set including three parts--upper, middle and under mold. Its material can be mold and plastic.

TOOL BOX & SAMPLE

Sandeep Engineers model servo automatic rigid paper box forming machine is the ideal processing equipment rigid box. It can greatly improve the production efficiency. First, Inner box bottom paste with surface paper, then fix the product on the mold of the forming machine by hand, different size box with different molds, then automatic four side pasting, folding, and bubble pressing.The size adjusting and bubble pressing action controlled by the servo motor ensure the high precision. Sandeep Engineers Rigid Box forming machine is the latest box packaging equipment for all kinds of boxes like gifts boxes, cosmetic boxes, sweet boxes, watch boxes, shoes boxes, jewellery boxes etc. It is manufactured by analysing the customer upcoming demands and requirements. The greatest advantage of the machine is that the outer dimensions of the top cover can be input on the touch screen. The action of the corresponding parts such as Cornering etc. is automatically done by the machine.

  • The machine is automated by servo motor and pneumatic, PLC programming control.
  • The main drive adopts dual servo drives, stable operation, flexible and adjustable forming and folding.
  • The depth of inner folding paper is widely applicable, flexible, adjustable without rebound.
  • The folding range is between 10-90mm.
  • The structure of the cornering part is connected to the pressure board foam board and adjusted before leaving the factory.
  • The boxes of different sizes do not need to be adjusted separately during production.
  • The multi-function-box making mode can complete the diagonal, center, and left-right corners.
  • The machine debugging is completed by man-machine interface selection, which is easy to adjust.
  • Box gluing, folding and forming are completed at onetime.
  • 15-25 pieces boxes can be produced per minute which improves the production eficiency of the rigid box and saves production costs.
  • Beacause each action is mechanically standardizing the production of the product which greatly improve the quality of the product.
  • This machine has a fault display and alarm function. If there is a fault in the electrical component, the fault will be displayed on the screen.
  • This machine is equipped with a light-touch safety switch, which can be pressed in case of emergency, or it will automatically stop in case of non-safe operation (double insurance), which is safe for workers.

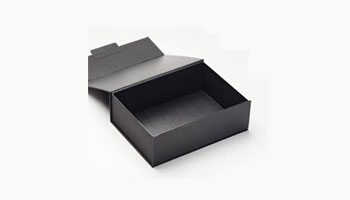

  • Gift Boxes

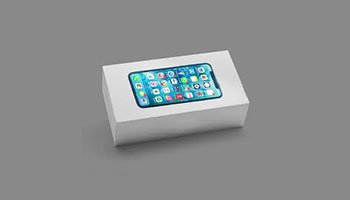

  • Mobile Boxes

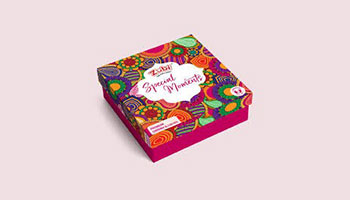

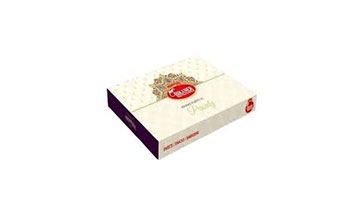

  • Sweet Boxes
  • Sweet Boxes

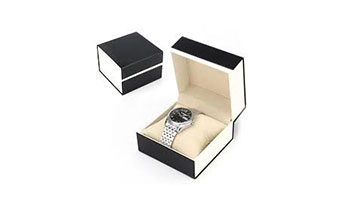

  • Watch Boxes

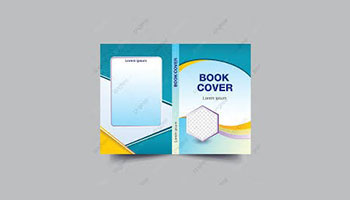

  • Book Cover Case

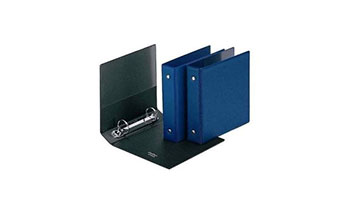

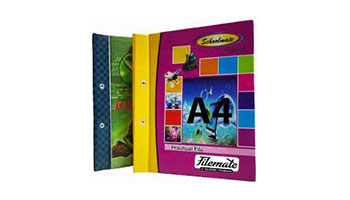

  • File Cover Case

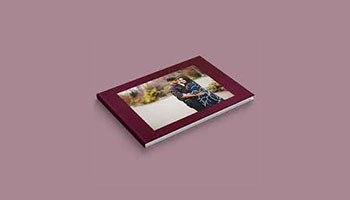

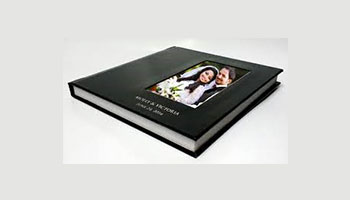

  • Album Case
  • Album Case
  • File Cover Case

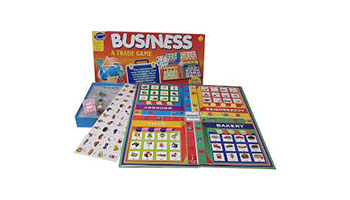

  • Game Board

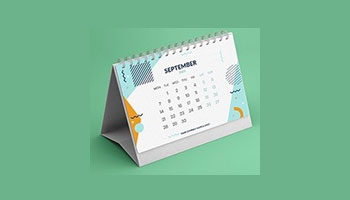

  • Calendar Case
